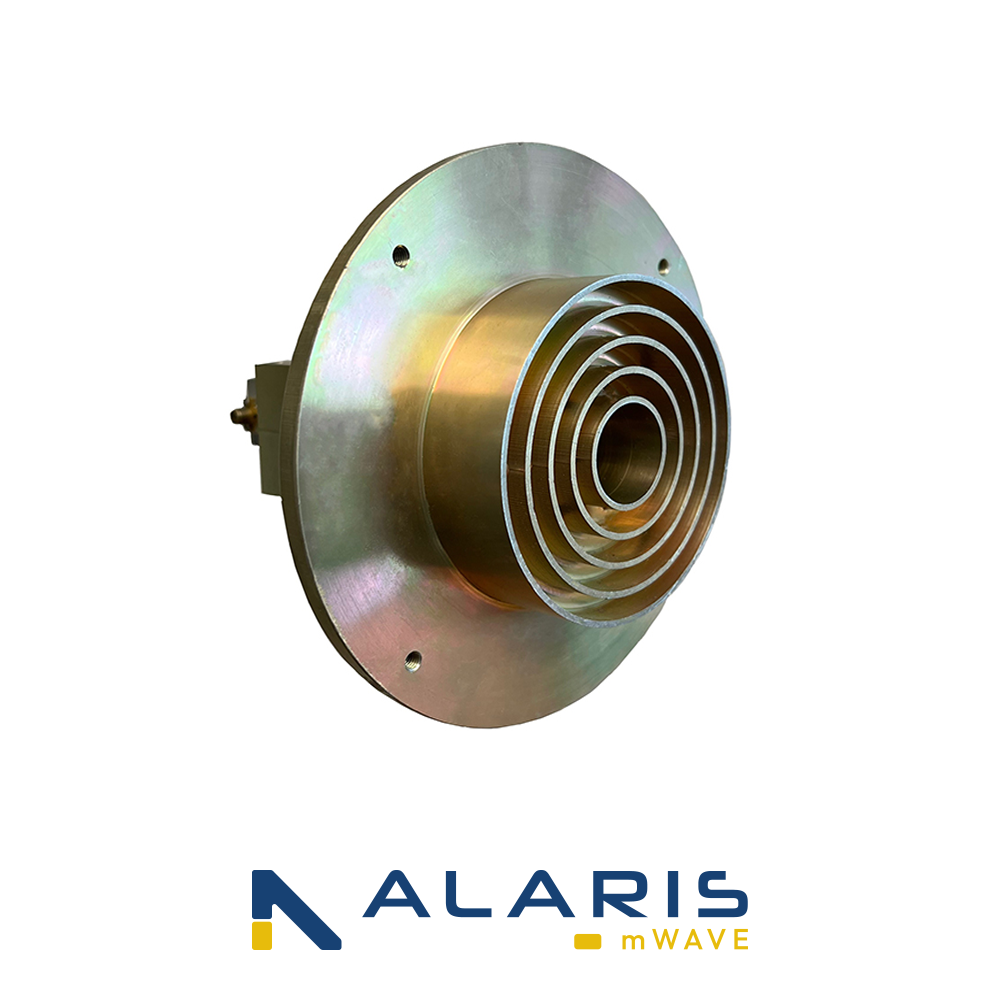

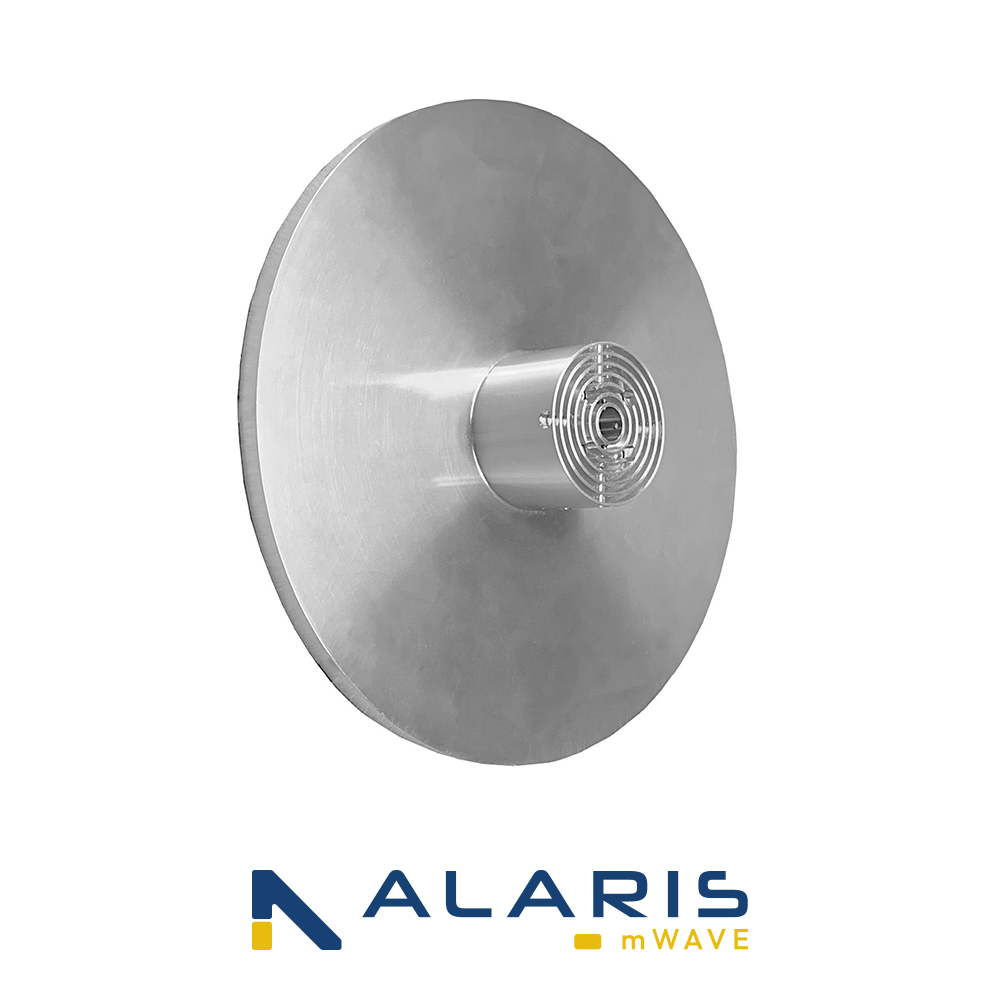

Prime Focus Feed Antenna (FPP-Series)
FPP-Series
This product is part of a wider family with customisable options including frequency bands, connectors, polarisation, and mounting configurations. Contact us to tailor it to your needs.
Optimised for performance, flexibility, and long-term reliability, the FPP1 Series includes a wide range of high-frequency prime focus feeds covering various frequency bands from 2.6 GHz to 50 GHz. Designed for use with 0.375 f/d ratio reflectors, these feeds are ideal for demanding RF applications requiring excellent polarisation purity and mechanical interchangeability.
*No payment required on checkout
-
Call our Sales team
- +12078920011
-
Email our Sales team
- [email protected]
Specifications & Resources for FPP-Series
-
Ideal markets
-
-
Telecommunications
- Telecoms providers
- Broadcast
-
Telecommunications
-
Ideal applications
-
-
Broadcast
- Satellite news gathering
- Wireless backhaul
-
Broadcast
- Antenna Type
- Prime Focus Feed
- Frequency Range
- Frequency coverage across S, X, Ku, K, V and Ka bands
- Polarization
- Available in Single Linear or Dual Linear polarisation options
- VSWR
- Low VSWR (as low as 1.3:1 average). VSWR ranges from 1.30:1 to 1.50:1, depending on frequency band and configuration.
- Mounting
- Durable 6-inch (152 mm) quick-disconnect mount for easy reflector integration
- Connectors
- Configurable RF connectors: SMA female, WR-90G, WR-75, WR-112G, WR-42, WR-137G and others
- Return Loss
- 17.7 dB
Other SKU variations of this product
This product range offers various configurations, with the complete SKU list for this range provided below.
- FPP1-103-S
- FPP1-103-S-LX
- FPP1-103A-90G
- FPP1-103A-S
- FPP1-103A-S-LX
- FPP1-152-S
- FPP1-152-S-LX
- FPP1-152A-S
- FPP1-152A-S-LX
- FPP1-187-S-LX
- FPP1-222-S
- FPP1-222-S-LX
- FPP1-33-N
- FPP1-33-S
- FPP1-33-S-LX
- FPP1-333-K
- FPP1-333-K-LX
- FPP1-49-S
- FPP1-49-S-LX
- FPP1-70-S
- FPP1-70-S-LX
- FPP1-85-112G
- FPP1CR-103-S
- FPP1CR-152-S
- FPP1CR-187-S
- FPP1CR-222-S
- FPP1CR-33-S
- FPP1CR-333-K
- FPP1CR-49-S
- FPP1CR-69-137G
- FPP1CR-70-S
- FPP1DC-103A-S
- FPP1DC-125-75G
- FPP1DC-125-S
- FPP1DC-152A-S
- FPP1DC-187-S
- FPP1DC-198-42G
- FPP1DC-222-42G
- FPP1DC-222-S
- FPP1DC-33-S
- FPP1DC-333-K
- FPP1DC-415A-2.4
- FPP1DC-49-S
- FPP1DC-69-137G
- FPP1DC-70-S
- FPP1DC-85-112G
- FPP1DC-85-S
- FPP1DL-103A-90G
- FPP1DL-125-2.92
- FPP1DL-125-75G
- FPP1DL-222-42G
- FPP1DL-222-S
- FPP1DL-33-284G
- FPP1DL-33-284GH
- FPP1DL-33-S
- FPP1DL-41-S
- FPP1DL-415A-2.4
- FPP1DLAB-49-S
- FPP1DLB-103-S
- FPP1DLB-103A-S
- FPP1DLB-152A-S
- FPP1DLB-187-S
- FPP1DLB-222-S
- FPP1DLB-333-K
- FPP1DLB-415-2.4
- FPP1DLB-415-2.9
- FPP1DLB-70-S
