Telemetry Horn Antennas (HCDL Series)
HCDL-Series
This product is part of a wider family with customisable options including frequency bands, connectors, polarisation, and mounting configurations. Contact us to tailor it to your needs.

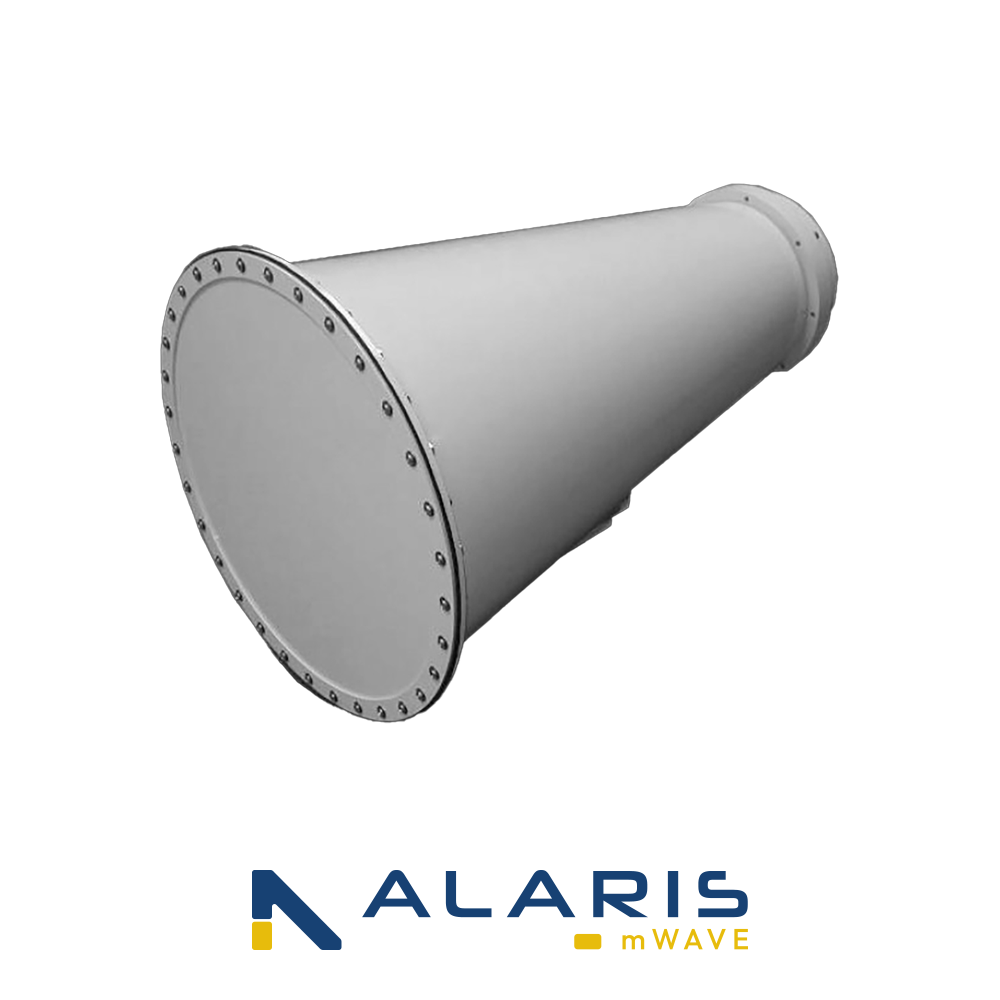

The mWAVE HCDL Series Telemetry Horns are conical-shaped antennas designed for outdoor use in telemetry applications. These horns are constructed from durable aluminum and feature sealed aperture windows to ensure robust performance in various environmental conditions. With SMA female connectors, the horns provide excellent port-to-port isolation of > 40 dB. They are tested for swept return loss data before shipment, ensuring reliable performance. The horns are coated with a clear chemical conversion and polyurethane white topcoat, ensuring durability and weather resistance.
*No payment required on checkout
-
Call our Sales team
- +12078920011
-
Email our Sales team
- [email protected]
Specifications & Resources for HCDL-Series
-
Ideal markets
-
-
Telecommunications
- Telecoms providers
- Utilities
-
Telecommunications
- Antenna Type
- Telemetry Horn Antenna
- Frequency Range
- HCDL14-19-S: L/S-Band, 1.4-2.4 GHz and HCDL20-48-S: C-Band, 4.4-5.15 GHz
- Gain
- 12.6 - 15.0 - 16.9 dBi
- Polarization
- Dual Linear
- VSWR
- HCDL14-19-S: 1.29:1 and HCDL20-48-S: 1.06:1
- Letter Bands
- L, S and C, depending on model
- Dimensions
- 23.65 (23.75 for HCDL20-48-S model) x 13.26 x 13.26-in
- Connector
- SMA female (other options available on request)
- Material
- Constructed from aluminum for durability and outdoor use
- Mounting
- Includes a bracket for flat surface mounting
- Finish
- Clear chemical conversion per MIL-C-5541E, class 1A.Polyurethane white topcoat Color No. 17875 per FED-STD-595.
Other SKU variations of this product
This product range offers various configurations, with the complete SKU list for this range provided below.
- HCDL14-19-S
- HCDL20-48-S
