OA06P1-55-S

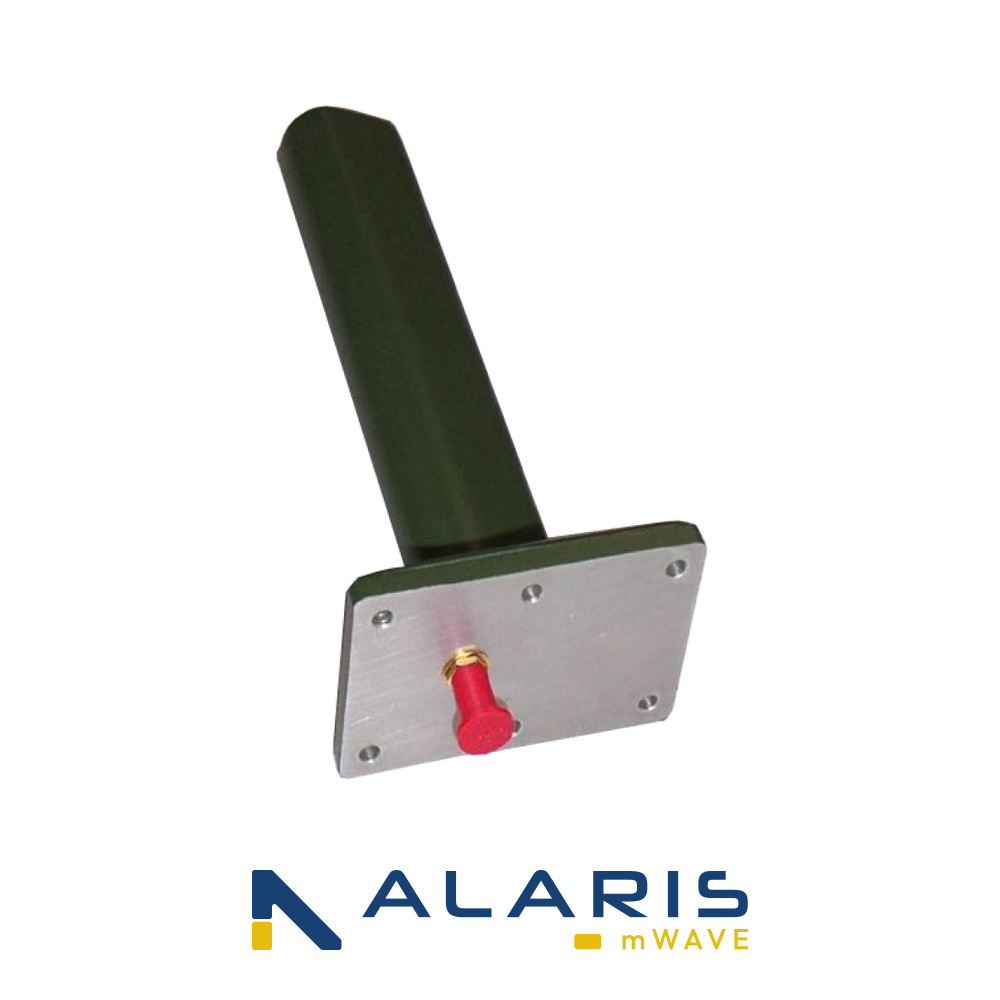

5.25–5.85 GHz C-Band Omni Antenna
Download datasheet
The OA06P1-55-S is a high-performance, airborne omnidirectional antenna designed to operate within the 5.25–5.85 GHz C-Band frequency range. This antenna features a 6 dBi gain and is vertically polarized, offering excellent signal reception and transmission in a compact design. It is equipped with an SMA Female connector and provides superior performance with a VSWR of 1.5:1 and a 14 dB Return Loss. Ideal for airborne applications, this antenna ensures reliable communication in challenging environments.
*No payment required on checkout
-
Call our Sales team
- +12078920011
-
Email our Sales team
- [email protected]
Specifications & Resources for OA06P1-55-S
Ideal application and market usage
- Antenna Type
- Omni
- Frequency Range
- 5.3 - 5.9 GHz
- Polarization
- Vertical Pol.
- VSWR
- 1.50:1
- Letter Band
- C
- Mass
- 0.25-lbs (0.11-kg)
- Diameter
- 6.5-in
- Connector
- SMA Connector
- Beamwidth
- 1.75
- Omnidirectional Design
- Provides uniform coverage in all directions
- Airborne Capability
- Designed for use in airborne applications
- Compact and Lightweight
- Suitable for space-constrained environments
- Reliable Performance
- Consistent signal reception and transmission across the C-Band
