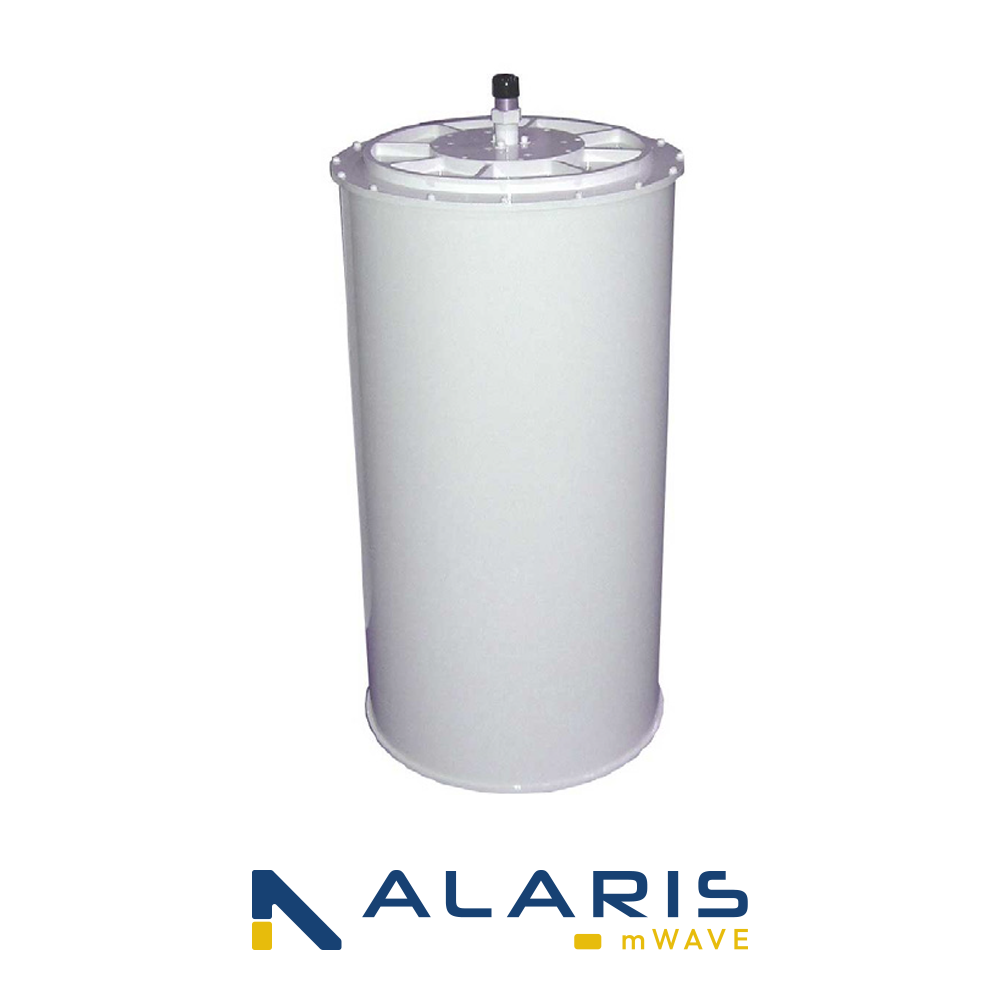

High Power LHCP UHF Omni Antenna (OQCL0 Series)
OQCL0-04-Series
This product is part of a wider family with customisable options including frequency bands, connectors, polarisation, and mounting configurations. Contact us to tailor it to your needs.
The OQCL0 Series includes three high-power, wide-band UHF omnidirectional antennas designed to operate within the 370–450 MHz frequency range. These antennas are designed to handle high continuous power, with capabilities of 1,000 watts (CW) for the OQCL0-04-7/16 model and 1,500 watts for the other two variants. They are equipped with Left Hand Circular Polarization (LHCP) and offer excellent performance in mission-critical environments. The antennas are designed to withstand adverse conditions, such as extreme temperatures, snow, and rain, ensuring reliability in challenging environments. The series is available with different connector options, including 7/16 DIN, 7/8 EIA, and LC Female connectors.
*No payment required on checkout
-
Call our Sales team
- +12078920011
-
Email our Sales team
- [email protected]
Specifications & Resources for OQCL0-04-Series
-
Ideal markets
-
-
Safety & Security
- Defence
- Homeland security
- Border control
-
Telecommunications
- Telecoms providers
- Utilities
-
Safety & Security
- Antenna Type
- Omni
- Frequency Range
- .4 - .5 GHz
- Gain
- 0 dBic +/- 2 dB in upper hemisphere dBi
- Polarization
- LHCP
- Power Handling
- 1,000 watts (CW) for OQCL0-04-7/16; 1,500 watts for OQCL0-04-7/8 and OQCL0-04-LC models
- VSWR
- 1.2:1
- Letter Band
- ULF
- Temperature Range
- Suitable for operation over a broad temperature range
- Connector
- 7/16 DIN, 7/8 EIA, LC Female
- Return Loss
- 20.8 dB
- Applications
- Mission-critical operations in adverse environments, telecom, defence, and industrial applications
Other SKU variations of this product
This product range offers various configurations, with the complete SKU list for this range provided below.
- OQCL0-04-7/16
- OQCL0-04-7/8
- OQCL0-04-LC
